product features:

·360 ° non-contact processing ·Handle various electric wires and tubes · Fully enclosed workstation ·Line speed control method ·Integrated area processing control ·High processing speed ·For difficult materials

Due to the low surface energy of the PP material, problems such as ink peeling and unsatisfactory bonding effects occur after printing or after glue bonding. In order to obtain the best bonding effect, improving the surface energy of the material becomes a vital link. The treatment with Tantec's corona equipment can significantly increase the surface energy of its materials and improve its adhesive properties.

CableTEC表面處理設備主要針對電線、線纜、內部不含導體材質的光纖、管子和各種擠出型產品。 CableTEC surface treatment equipment is mainly targeted at wires, cables, optical fibers without tubes, tubes, and various extrusion products.
CableTEC is a unique and cost-effective method to improve and enhance the surface energy of modified polymer cables, insulators (PE, PP, PTFE) and extruded tubes, thereby optimizing and promoting inks, glues or layers on the surface of materials Of adhesion.

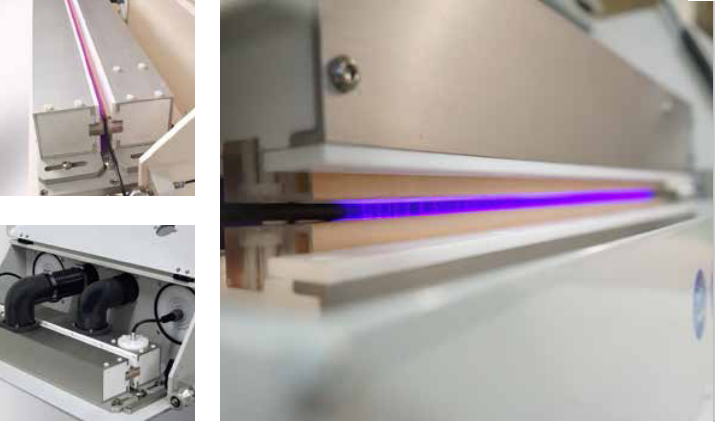

CableTEC surface treatment equipment is specially designed for easy integration into new or existing production lines. The entire system includes; a high-frequency generator, a high-voltage transformer, an air-cooled electrode, an ozone filter, and a custom protective cover to form an independent or desktop processing station.

Features：
·Full-speed control The device has a full-speed control mode that automatically turns on and off.
·Full coverage 360 ° non-contact processing product, almost no damage to the product.
·Handle standard cables Can handle cable products with a diameter of 0.5-8mm, special diameter can be customized according to customer requirements.
·Processing of special materials Can handle special materials such as PTFE and cross-linked polymers.
·Power density control ensures consistent processing results at different speeds.
·Processing process monitoring The HV-X series host of this system is connected with PLC to easily realize the function of parameter setting and real-time monitoring of the equipment.
·Totally closed processing station conforms to European CE standard industrial design scheme.
·High-speed processing The maximum processing speed is 600 m / min (depending on the cable material).
